Product Description

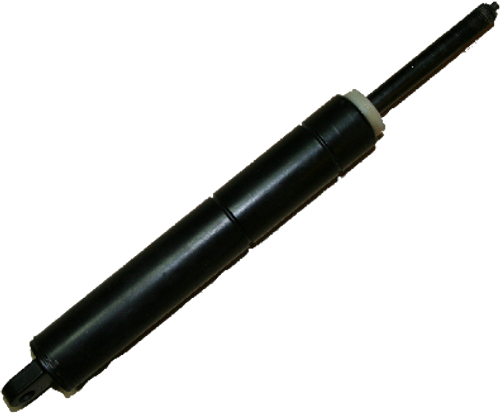

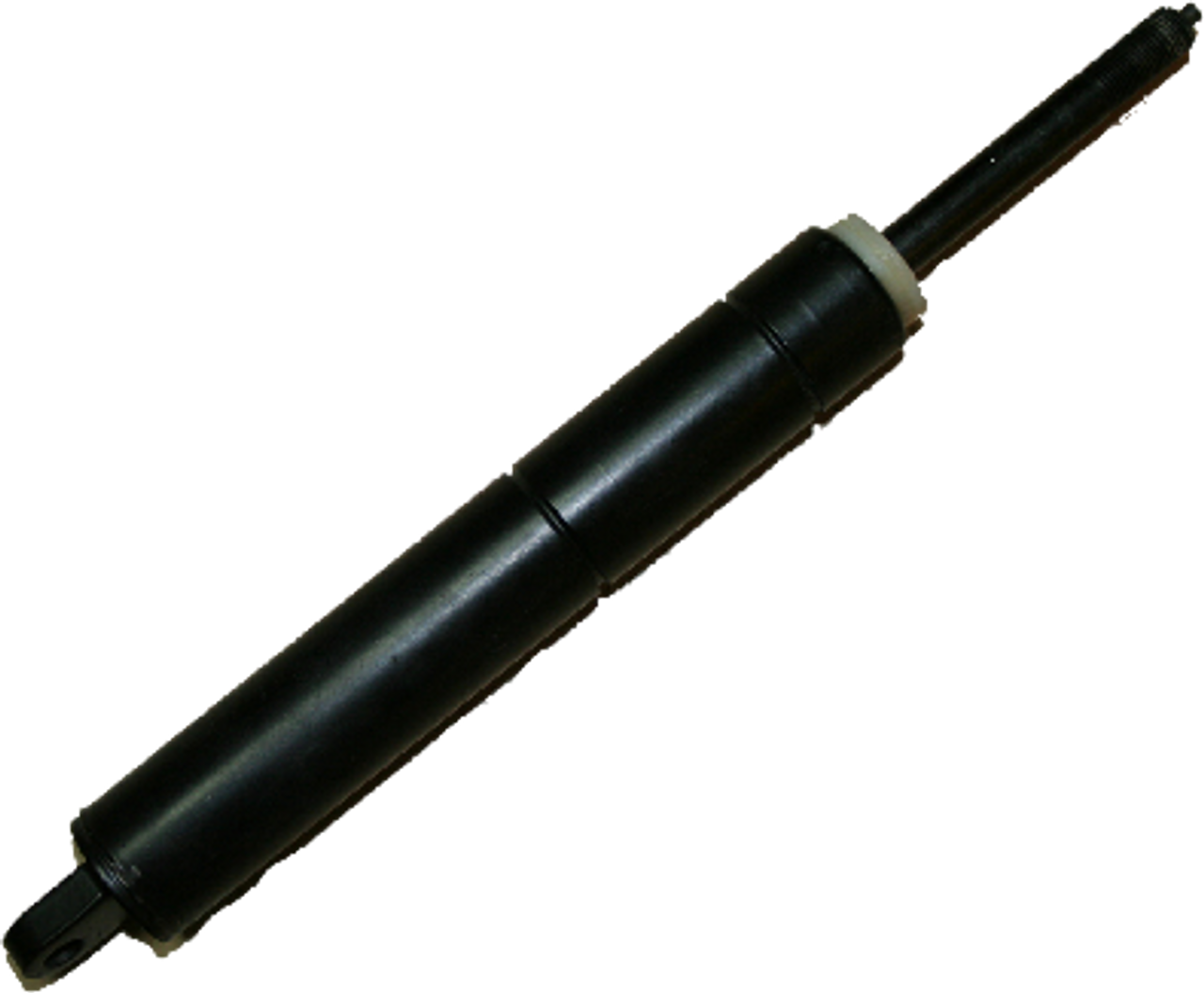

Zenith 230 Breakaway Gas Cylinder

This Zenith Breakaway Gas Cylinder fits ONLY the Zenith 230 Hylo Table or Zenith 60 Stationary breakeaway. The installation of the Zenith Breakaway Gas Cylinder is a medium to hard replacement.

Breakaway Adjustment for Raising By Itself

1. Extend Breakaway Chest all the way up
2. Loosen Jam Nut
3. Turn Shaft Counter clockwise 1/4 Turn
4. Check for Lock If still slipping turn another 1/4 Round till it doesn't slip, but still locks and unlocks.
5. Tighten Lock Nut back down

Breakaway Adjustment for Not Releasing

1. Loosen Jam Nut
2. Turn Shaft Clockwise 1/4 Turn
3. Check for Lock / Unlock .
4.If not unlocking turn another 1/4 Round till it still locks and unlocks , but doesn't slip.
5. Tighten Lock Nut back down
