Product Description
Zenith Power Front Motor
OBSOLETE Original Motor PN#: 215-004-00 has been closed for many years, motors or components are not available.
Physically the Power Front Section is not hard to install but does involve re-wiring part of the table.
Pictures in order:

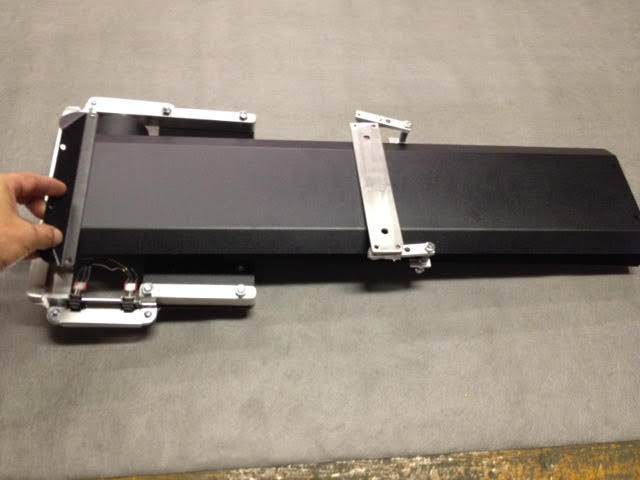

- All of these photo’s are shown from the ‘bottom view’ to remove the bottom pan; the power front section has a long, one piece cover pan allowing the modular motor system to slide along pulling from both sides.

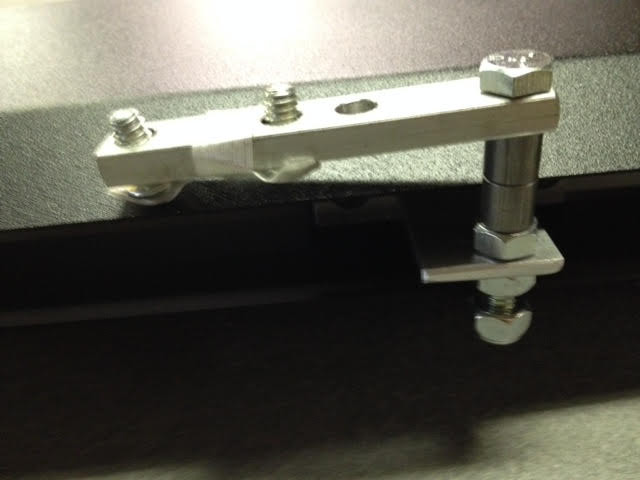

- Depending upon which Zenith table product, there are several attaching points for the front section connection to the hidden modular motor pack. The upright hex screws (2) and brackets hook to the table upper section. The hex screw with spacers attaches directly to the PFS motor module.
- With the large pan cover shown is coming away, you can see how the exposed PFS module has twin brackets on either side. Please examine the electrical plug connections from top buttons, down through the ‘right side pipe’.
- The Zenith PFS module built after 2008 will have a single set of touch buttons (shown at the bottom left corner) and two (2) wire connections (far left).

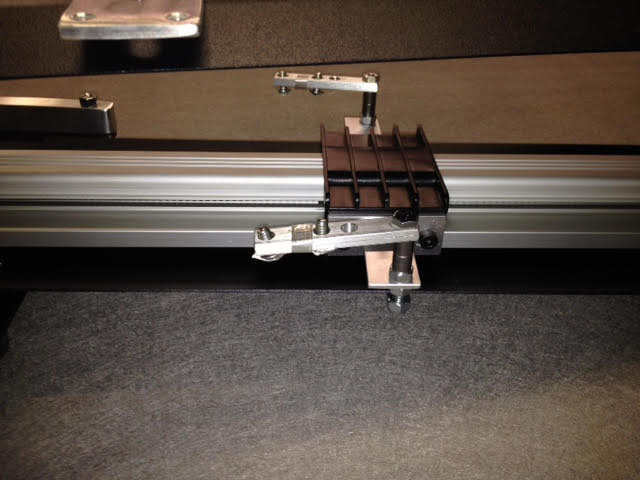

- The black carrier in the center moves along on the aluminum track.
